Nomex paper, a meta-aramid-based insulation material developed by DuPont, has revolutionized the electrical insulation industry for over five decades. This exceptional material combines thermal stability, mechanical strength, and electrical properties that make it indispensable in various high-performance applications. Understanding what Nomex paper is used for helps engineers, manufacturers, and procurement specialists make informed decisions about electrical insulation solutions.
Understanding Nomex Paper: Core Properties and Composition
Nomex paper is manufactured from meta-aramid fibers, creating a unique calendered or uncalendered sheet material with remarkable characteristics. The material’s molecular structure provides inherent flame resistance, exceptional thermal stability, and outstanding dielectric strength. Unlike conventional cellulose-based insulation paper, Nomex maintains its properties across extreme temperature ranges, making it suitable for demanding electrical applications.
The most common variant, Nomex 410, features a high-density calendered construction that delivers optimal mechanical toughness and electrical performance. This aramid paper is classified as Class H insulation material (180°C continuous operating temperature) by Underwriters Laboratories, with recognition for use up to 220°C in specific applications. The material demonstrates remarkable thermal endurance, maintaining dielectric strength of 12 kV/mm even after several hours at 400°C.
Primary Applications of Nomex Paper in Electrical Equipment
Motor Insulation Systems
Electric motors represent one of the most significant application areas for Nomex paper. The material serves multiple functions within motor construction, including slot insulation, phase insulation, and ground insulation. In high-voltage motors operating under severe conditions, Nomex paper provides critical protection against electrical stress, thermal overload, and mechanical vibration. The material’s flexibility allows it to conform to complex motor geometries while maintaining consistent dielectric performance.
For motor manufacturers requiring specialized insulation configurations, Nomex paper can be die-cut, laminated, or adhesive-coated to meet specific design requirements. The material’s compatibility with various impregnating resins and varnishes ensures complete void filling and enhanced electrical performance. When compared to traditional materials, Nomex significantly extends motor service life, particularly in applications involving frequent start-stop cycles or continuous high-temperature operation.
Transformer Insulation Applications

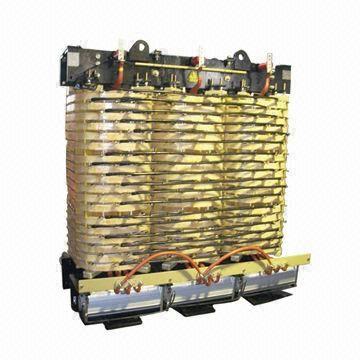

Transformers utilize Nomex paper extensively for both dry-type and liquid-immersed designs. In dry-type transformers, Nomex 410 and 414 serve as main insulation between windings and as coil end fillers. The material’s high bulk and conformability ensure proper coverage of complex geometries, while its thermal stability prevents degradation during temperature excursions. For liquid-immersed transformers, Nomex 910, which contains cellulosic components, offers an excellent balance between traditional kraft paper and pure aramid properties.
Transformer manufacturers benefit from Nomex paper’s ability to withstand partial discharge, a common failure mechanism in high-voltage equipment. The 800 series of Nomex papers specifically addresses the demanding requirements of rotating machines and large power transformers exposed to extreme electrical stress. When integrated with appropriate cooling systems using oil duct spacers, Nomex-insulated transformers achieve superior thermal management and extended operational lifespans.
Generator and Turbine Applications
Large generators and wind turbine systems rely on Nomex paper for stator insulation, rotor wrapping, and component isolation. The material’s resistance to corona discharge and its ability to maintain integrity under continuous mechanical stress make it ideal for rotating machinery applications. In wind energy systems, where equipment faces variable environmental conditions and frequent load changes, Nomex paper provides reliable insulation performance throughout extended service intervals.
| Application Category | Common Nomex Grades | Key Requirements | Typical Thickness Range |
|---|---|---|---|
| Motor Slot Insulation | 410, 414 | High dielectric strength, mechanical toughness | 0.13-0.58 mm |
| Dry-Type Transformers | 410, 414 | Conformability, impregnability | 0.18-0.38 mm |
| Liquid-Immersed Transformers | 910 | Oil compatibility, thermal stability | 0.08-0.25 mm |
| Generator Stators | 410, 800 Series | Corona resistance, mechanical strength | 0.25-0.76 mm |
| Cable Wrapping | 411, Crepe Paper | Flexibility, conformability | 0.13-0.38 mm |
Specialized Nomex Paper Applications Beyond Traditional Electrical Equipment
Battery Pack Insulation
The rise of electric vehicles and energy storage systems has created new applications for Nomex paper. The 200 series, specifically designed for battery packs and electronic applications, provides thermal barriers between cells, protection against thermal runaway, and electrical isolation in high-voltage battery assemblies. This application leverages Nomex’s non-melting characteristics and its ability to maintain structural integrity even when exposed to short-circuit conditions or thermal events.
Electronic Component Protection
In power electronics, UPS systems, and data center equipment, Nomex paper serves as thermal barriers, insulating gaskets, and component separators. The material’s low flammability (UL 94V-0 rating) and non-toxic decomposition products make it particularly valuable in applications where fire safety is paramount. For high-frequency applications, Nomex’s consistent dielectric properties across broad frequency ranges ensure reliable performance in sophisticated electronic systems.
Industrial and Specialized Uses
Beyond electrical applications, Nomex paper finds use in welding protection, automotive heat shields, and high-temperature gaskets. The material’s resistance to chemicals, including most solvents, oils, and coolants, allows it to function in harsh industrial environments. In lighting ballasts, HVAC equipment, and small appliances, lower-cost Nomex variants provide adequate performance while meeting cost constraints.
Comparing Nomex Paper with Alternative Insulation Materials
When evaluating insulation materials for specific applications, engineers must consider the trade-offs between Nomex paper and alternatives such as kraft paper and DDP paper. While kraft paper offers excellent electrical properties and lower cost for oil-immersed transformers, Nomex provides superior thermal performance and mechanical strength for air-cooled equipment. Pressboard insulation offers higher mechanical strength for structural applications but lacks Nomex’s flexibility and thermal endurance.
For applications requiring a combination of properties, composite laminates integrating Nomex with polyester films (NMN construction) or polyimide films (NKN construction) deliver enhanced performance characteristics. These flexible laminates find widespread use in motor slot liners, transformer barriers, and specialty electrical components where both thermal stability and dielectric performance are critical.
Technical Considerations When Specifying Nomex Paper
Grade Selection Guidelines
Selecting the appropriate Nomex grade requires careful analysis of application requirements. Nomex 410, with its high density and calendered finish, suits applications demanding maximum dielectric strength and mechanical toughness. For applications requiring enhanced conformability and resin absorption, Nomex 411 or 414 provides better impregnability due to their uncalendered or specially processed structures. The 416 LAM and 464 LAM grades, specifically formulated for laminate construction, enable fabrication of composite materials with tailored property profiles.
Thickness and Density Optimization
Proper thickness selection balances electrical insulation requirements with space constraints and mechanical considerations. Thinner Nomex papers (0.05-0.13 mm) suit applications with tight space limitations or where multiple layers provide the required insulation. Thicker grades (0.38-0.76 mm) serve applications requiring substantial mechanical protection or single-layer insulation systems. The material’s specific gravity, ranging from 0.3 for low-density grades to 1.2 for high-density variants, influences both electrical properties and material handling characteristics.
Processing and Fabrication Compatibility
Nomex paper accommodates various fabrication methods, including die-cutting, slitting, forming, and adhesive coating. The material can be processed using conventional equipment designed for paper products, though cutting tools require more frequent maintenance due to aramid fiber toughness. For complex geometries or high-volume production, precision die-cutting delivers consistent parts with tight tolerances. Adhesive coating, typically using acrylic or silicone systems, enables simplified assembly processes while maintaining thermal performance.
Real-World Application Examples and Case Studies
High-Voltage Motor Retrofit
A major industrial facility faced premature motor failures in high-temperature process equipment operating continuously at 180°C ambient temperature. Traditional Class F insulation systems degraded rapidly, requiring motor replacements every 18-24 months. By upgrading to Nomex 410-based insulation systems, the facility extended motor service life to over 7 years, significantly reducing maintenance costs and production interruptions. The retrofit project demonstrated Nomex’s superior thermal endurance in demanding industrial environments.
Wind Turbine Generator Optimization
Wind turbine manufacturers transitioning to higher-power-density generators encountered challenges with insulation system durability under variable thermal cycling and mechanical vibration. Implementation of Nomex 800 series papers in stator insulation, combined with optimized cooling duct spacer designs, enabled 20% power density increases while maintaining target 25-year service life. The project highlighted Nomex’s ability to support aggressive performance targets in renewable energy applications.
Electric Vehicle Battery Safety Enhancement
An electric vehicle manufacturer sought improved battery pack safety following thermal event testing that revealed potential propagation risks. Integration of Nomex 200 series paper as cell-to-cell barriers and module insulation reduced thermal propagation velocity by 65%, providing critical additional time for active safety systems to respond. This application demonstrated Nomex’s value in emerging electric mobility applications where fire safety is paramount.
Sourcing and Quality Considerations for Nomex Paper
Procurement of Nomex paper requires attention to supplier credentials, material certification, and application-specific testing requirements. Authentic DuPont Nomex materials carry specific UL file numbers and certification marks that verify compliance with recognized standards. For critical applications, requesting material test reports and certificates of conformance ensures product authenticity and performance verification.
When sourcing insulation materials for transformer and motor applications, working with experienced suppliers who understand the nuances of different insulation systems proves invaluable. At SIDA, we specialize in providing high-quality electrical insulation materials, including various grades of Nomex paper and complementary products such as pressboard, kraft paper, and DDP paper. Our technical team can assist with material selection, application engineering, and custom processing to meet specific project requirements.
Common Questions About Nomex Paper Applications
Can Nomex paper be used in oil-immersed applications?
Yes, specific grades of Nomex paper, particularly Nomex 910, are designed for liquid-immersed transformer applications. However, standard Nomex 410 can also be used in oil-immersed equipment, though it exhibits different absorption characteristics compared to traditional kraft paper. For optimal performance in oil-immersed systems, consider using Nomex 910 or consulting with insulation specialists to determine the most appropriate grade for your specific transformer design.
How does Nomex paper perform at cryogenic temperatures?
Nomex paper maintains its mechanical and electrical properties across an extremely wide temperature range, from cryogenic temperatures (-196°C) to continuous operation at 220°C and short-term exposure to 400°C. This exceptional temperature range makes Nomex suitable for specialized applications involving extreme cold, such as superconducting equipment or cryogenic pumps, where conventional insulation materials would become brittle and fail.
What processing methods work best with Nomex paper?
Nomex paper can be processed using die-cutting, laser cutting, water jet cutting, knife cutting, and conventional slitting equipment. Die-cutting offers the best precision and production speed for high-volume applications. Laser cutting enables complex geometries without tooling costs but may require edge treatment to prevent fiber fraying. For simple shapes and prototypes, knife cutting provides a cost-effective solution. The material can also be laminated, adhesive-coated, and formed using heat and pressure to create three-dimensional parts.
Is Nomex paper environmentally sustainable?
While Nomex paper is not biodegradable due to its synthetic aramid composition, it contributes to environmental sustainability indirectly through extended equipment service life and reduced maintenance requirements. The material’s exceptional durability means fewer replacements over equipment lifetime, reducing overall resource consumption. Additionally, Nomex’s non-toxic decomposition products and low smoke generation during thermal events minimize environmental and health impacts compared to some alternative materials. Proper disposal through appropriate industrial waste channels ensures responsible end-of-life management.
Future Trends in Nomex Paper Applications
The electrical insulation industry continues evolving, with Nomex paper adapting to emerging application requirements. Electric vehicle proliferation drives demand for specialized battery insulation solutions, while renewable energy expansion increases requirements for high-reliability insulation systems in wind and solar equipment. The ongoing miniaturization of electrical devices pushes development of thinner Nomex grades with maintained or enhanced properties.
Advanced manufacturing techniques, including additive manufacturing and hybrid material systems, create opportunities for innovative Nomex applications. Research into composite materials combining Nomex with other high-performance polymers aims to develop next-generation insulation systems with tailored thermal, electrical, and mechanical properties. As power electronics advance toward higher voltage and temperature operation, Nomex paper’s exceptional performance characteristics position it as a critical enabling material for future electrical technologies.
Partner with SIDA for Your Insulation Material Requirements
Whether you’re designing high-performance motors, developing advanced transformer systems, or engineering battery packs for electric vehicles, selecting the right insulation materials is critical to product success. SIDA offers comprehensive support for electrical insulation projects, from material selection and application engineering to custom processing and global logistics.
Our extensive product portfolio includes various grades of Nomex paper alongside complementary materials such as laminated densified wood, phenolic laminates, and specialty pressboards. We understand the specific requirements of transformer manufacturers, motor OEMs, and electrical equipment producers across diverse industries. Our technical team brings decades of combined experience in insulation system design and can provide guidance on material substitution, cost optimization, and performance enhancement.
For detailed product specifications, technical data sheets, or application engineering support, contact our team at jessie.feng@sidanm.com or call +86-15958243831. Visit our website at sidanm.com to explore our complete range of electrical insulation materials, or reach us via WhatsApp for immediate assistance. We’re committed to supporting your project success with reliable materials, expert guidance, and responsive service.
Conclusion: The Enduring Value of Nomex Paper in Electrical Applications
Nomex paper has earned its position as a cornerstone material in electrical insulation through more than 50 years of proven performance across countless applications. From motors and transformers to emerging battery technologies, this meta-aramid material delivers the thermal stability, electrical performance, and mechanical reliability that modern electrical equipment demands. Understanding what Nomex paper is used for enables informed decisions about insulation system design, material specification, and application optimization.
As electrical equipment continues advancing toward higher power densities, increased operating temperatures, and extended service life requirements, Nomex paper’s unique property profile becomes increasingly valuable. The material’s compatibility with various processing methods, resin systems, and complementary insulation materials provides design flexibility while maintaining uncompromising performance. For engineers and manufacturers seeking to optimize equipment reliability and longevity, Nomex paper represents a proven solution backed by extensive application data and global industry acceptance.
The future of electrical insulation will undoubtedly bring new materials and technologies, but Nomex paper’s fundamental advantages—exceptional thermal endurance, inherent flame resistance, outstanding mechanical properties, and proven field reliability—ensure its continued relevance across evolving application landscapes. Whether addressing current design challenges or engineering solutions for next-generation electrical equipment, Nomex paper remains an essential material in the electrical insulation toolkit.
